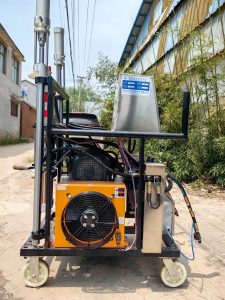

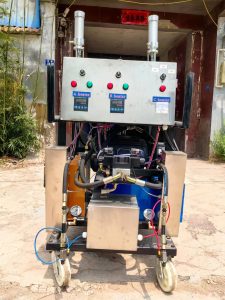

SJ-II Hydraulic Polyurea Sprayer

Technical Parameters:

• Raw Material Mixing Ratio: 1:1 (fixed ratio as standard)
• Raw Material Viscosity Range: 200~1000 CPS (under operating temperature)
• Maximum Raw Material Output: 15 kg/min (3 times the output of pneumatic machines in the same time)
• Raw Material Heating Power: 6000W × 2
• Pipeline Insulation Heating Power: 2000W
• Heating Temperature Range: 0°C ~ 90°C
• Power Supply: Three-phase four-wire 380V 50HZ
• Working Dynamic Pressure: 120150 Mpa (18002200 PSI, consistent with international hydraulic machine standards; unattainable by pneumatic machines)
• Maximum Raw Material Output Pressure: 200 Mpa
• Spray Gun Cleaning Method: Air cleaning
• Driving Method: Hydraulic drive
• Equipment Overall Dimensions (Length × Width × Height): 80×75×130 cm
• Transportation Weight: 500 kg
